Stay cool with Termodizayn's innovative solutions

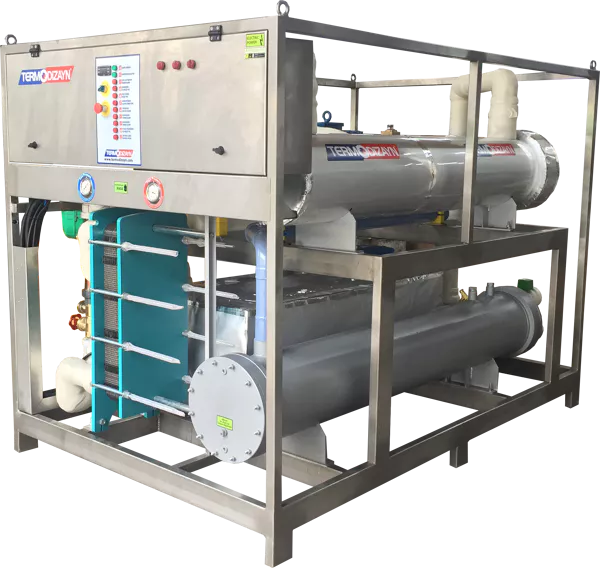

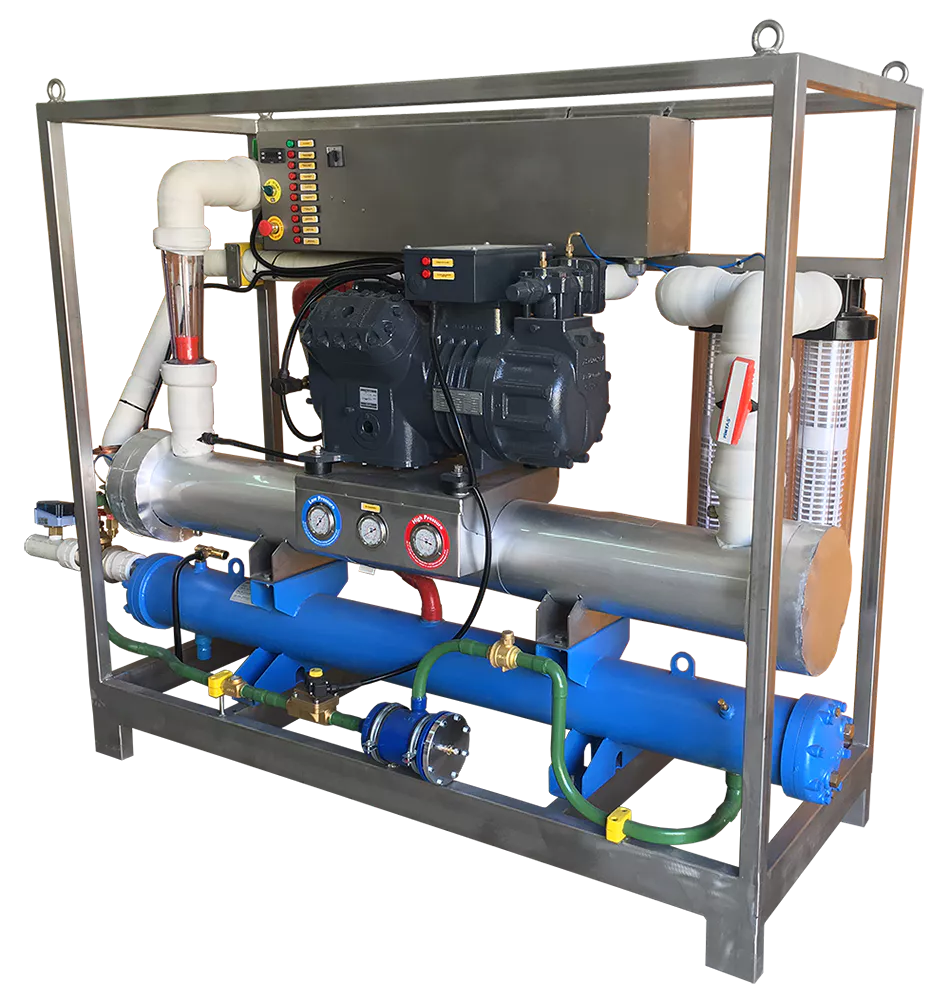

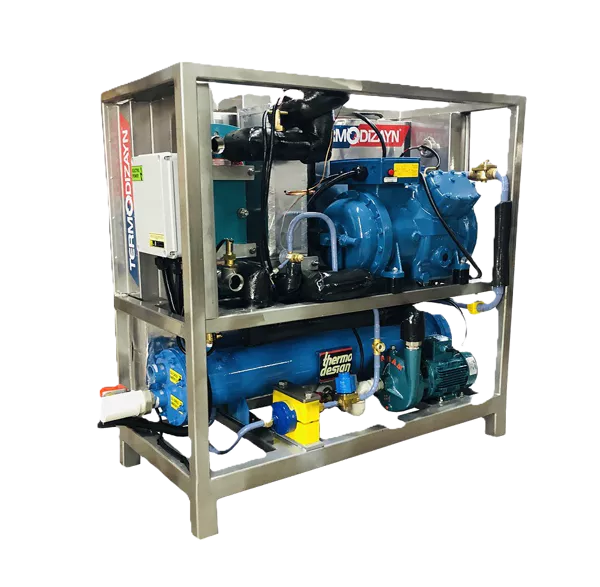

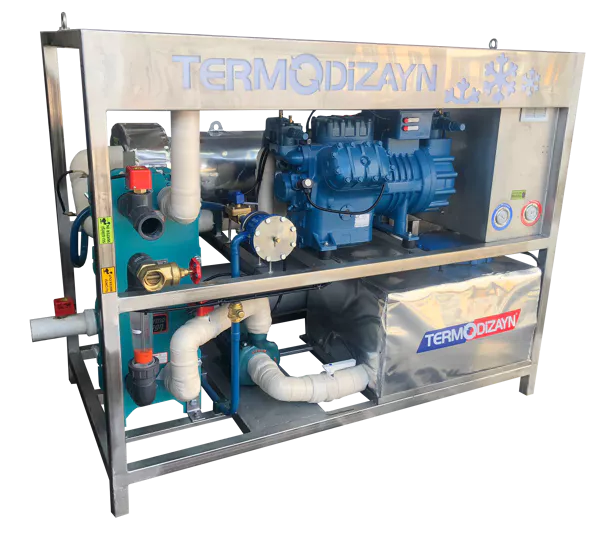

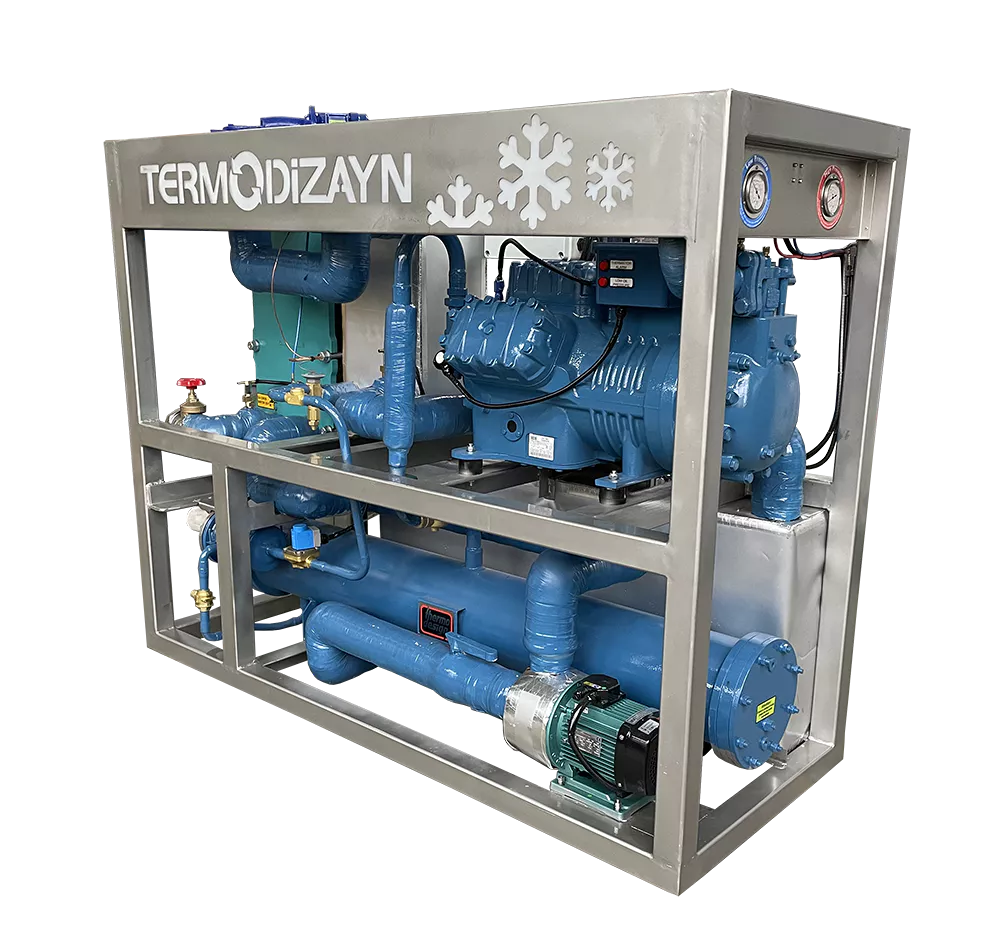

Refrigerated Sea Water Chiller Units
Cutting-edge cooling systems for fishing industry
Termodizayn Refrigerated Sea Water (RSW) systems are used onboard fishing vessels to preserve large catches. Storing the catch in an RSW system is an effective and cost-saving method of preserving the catch until offloading ashore or further processing onboard. In a minimum amount of time the catch is cooled down close to the freezing point of seawater, assuring its freshness and quality during transport.In an RSW system, seawater is recirculated by pumps through the tanks and the chilling system. Before entering the tanks, the seawater is chilled by the refrigeration equipment. The seawater is distributed evenly over the complete bottom cross-section of the tanks through a set of perforated plates or similar distribution devices. The chilled seawater passes upwards through the tank and layers of fish, thus keeping the fish semi-floating and simultaneously cooling it. The water returns through suction screens in the top of the thanks to the chilling unit of the system and, subsequently, the circulation process is repeated.
Titanium Plate Evaporater
Durable titanium plate evaporators for efficient coolingQuite and highly efficient for tropical climates
Efficient chiller units specifically designed for sea water coolingRSW Models
RSW 5S
Dimensions (WxLxh): 1000x550x1150 mm.RSW 12SDimensions (WxLxh): 1200x550x1150 mm
RSW 25SDimensions (WxLxh): 800x1800x1600 mm
RSW 35S
Dimensions (WxLxh): 1750x700x1350 mm.
RSW 40SDimensions (WxLxh): 1000x2500x1600 mm.
RSW 50SCold Water Capacity (3h): 10500 lt
RSW 75S
Dimensions (WxLxh): 1100x2200x1600 mm
RSW 2x35SCold Water Capacity (3h): 15000 lt
RSW 2x50SDimensions (WxLxh): 1450x2500x1850 mm.
RSW 2x75S
Cold Water Capacity (3h): 30000 ltRSW 3x70SCold Water Capacity (3h): 45000 lt
RSW 3x75SCold Water Capacity (3h): 60000 lt
